Dimension4 Project System Layout

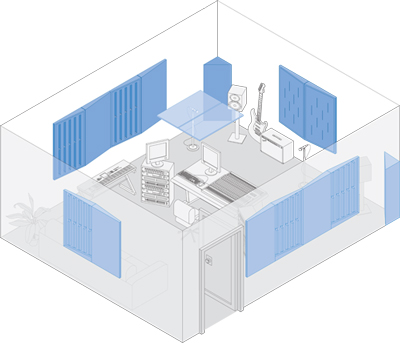

The layout of panels in the Project system is pretty simple. Place all the wall panels at 2' off the floor.

Absorber and diffuser units alternate around the room to provide a mix of damping and spaciousness.

Place the first set of wall units at the first reflection point, then place the three other units behind that. Find the first reflection point by using a mirror. Where you see the nearest speaker in it from the seating position is a reflection point; it's that simple!

Place the two ceiling absorber units at the first reflection points between the speakers and the listening position.

Place the Bazorber™ mid-bass absorber units on the front wall at the first reflection point between the speaker and the listener (use the mirror trick!).

Place the SpringTrap™ bass absorber modules in the front corners on the floor, with the vent ports facing down. If the corners aren't available, place the SpringTraps along the front wall/floor junction, laying down on their sides as close  to the corner as possible.
