The Project System Layouts

Click below for larger image

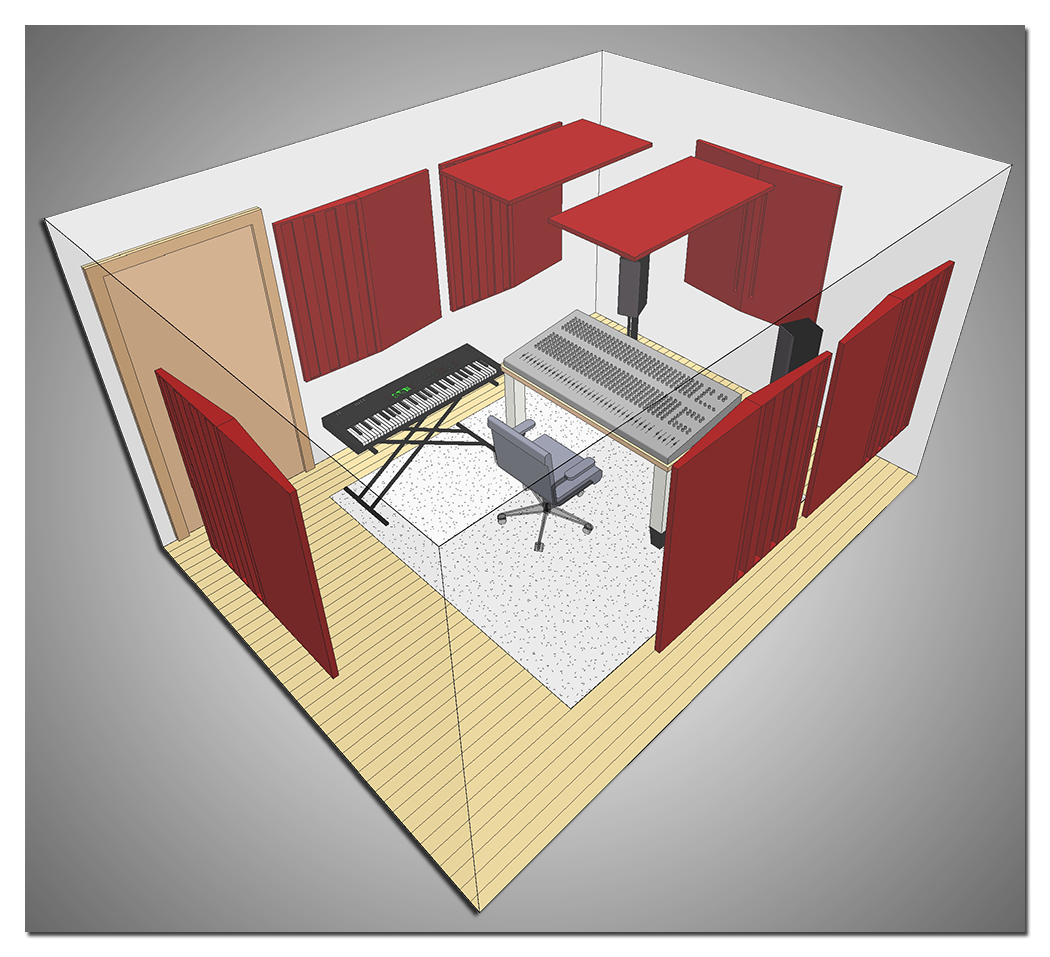

  • System 150
    For 150 sq. foot rooms

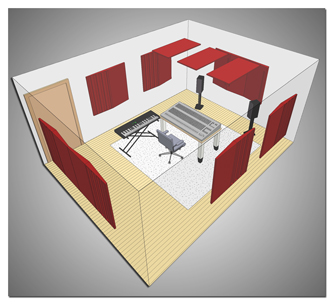

  • System 250
    For 250 sq. foot rooms

150   250



5 Wedge Absorber Panels
5 Wedge Diffuser Panels
2 Ceiling Clouds
2 Bazorber Panels



6 Wedge Absorber Panels
6 Wedge Diffuser Panels
3 Ceiling Clouds
3 Bazorber Panels

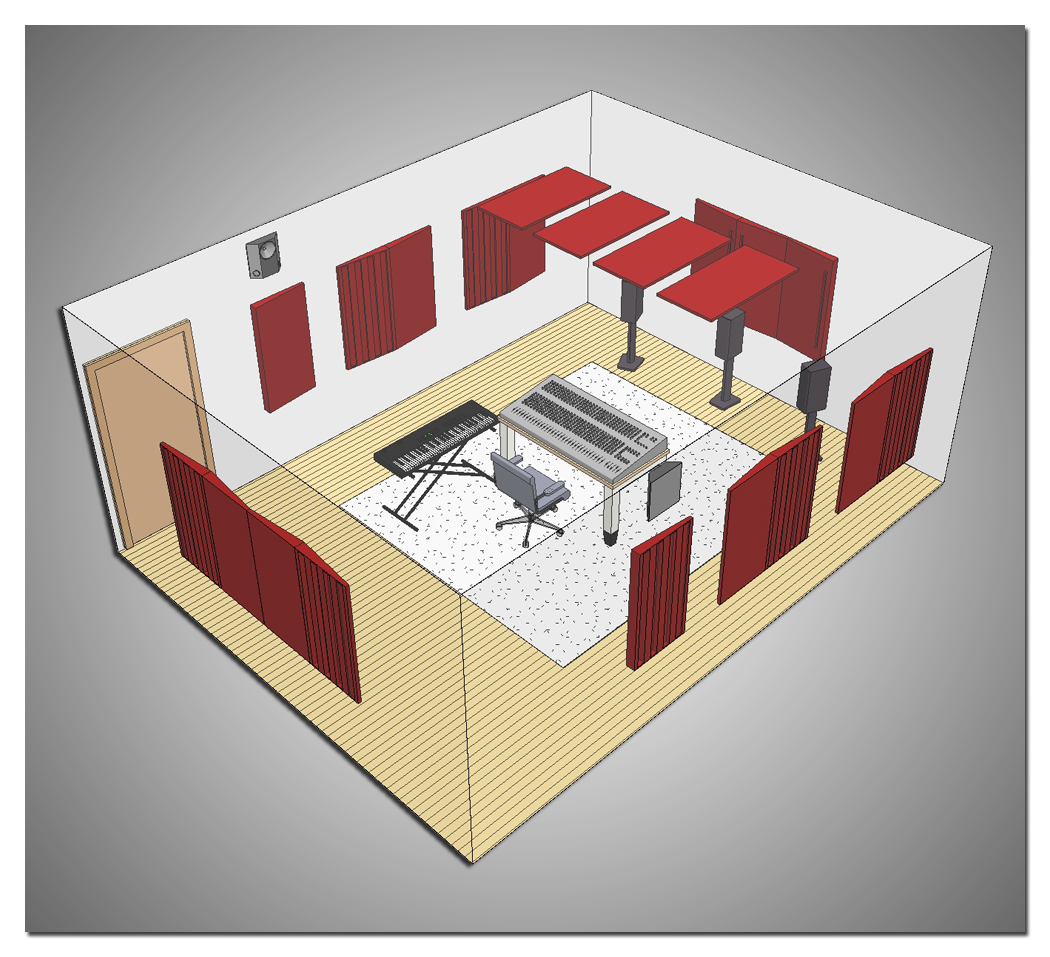

  • System 350
    For 350 sq. foot rooms

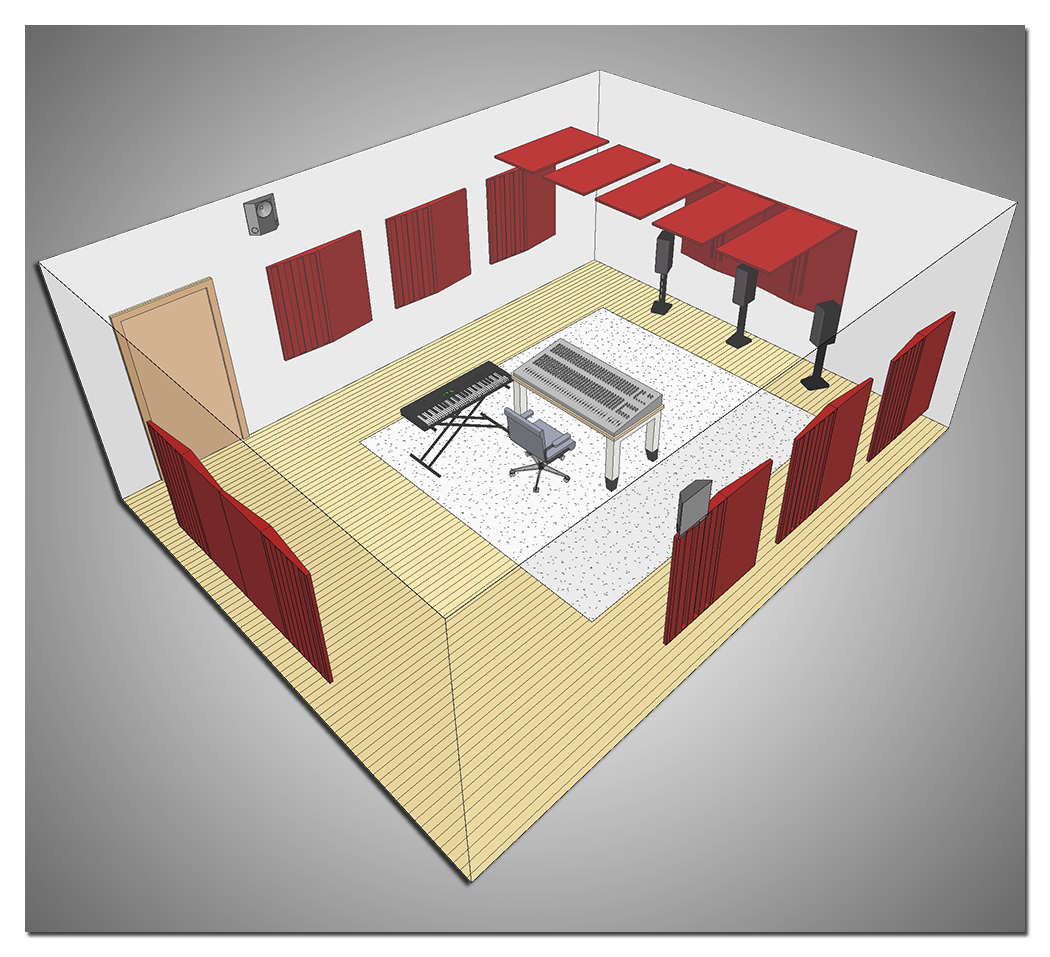

  • System 450
    For 450 sq. foot rooms

450   550


7 Wedge Absorber Panels
7 Wedge Diffuser Panels
4 Ceiling Clouds
3 Bazorber Panels





8 Wedge Absorber Panels
8 Wedge Diffuser Panels
5 Ceiling Clouds,
4 Bazorber Panels


  back to project
