Symphony2 System Layouts

Click image below for larger view.

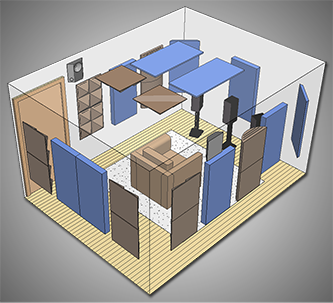

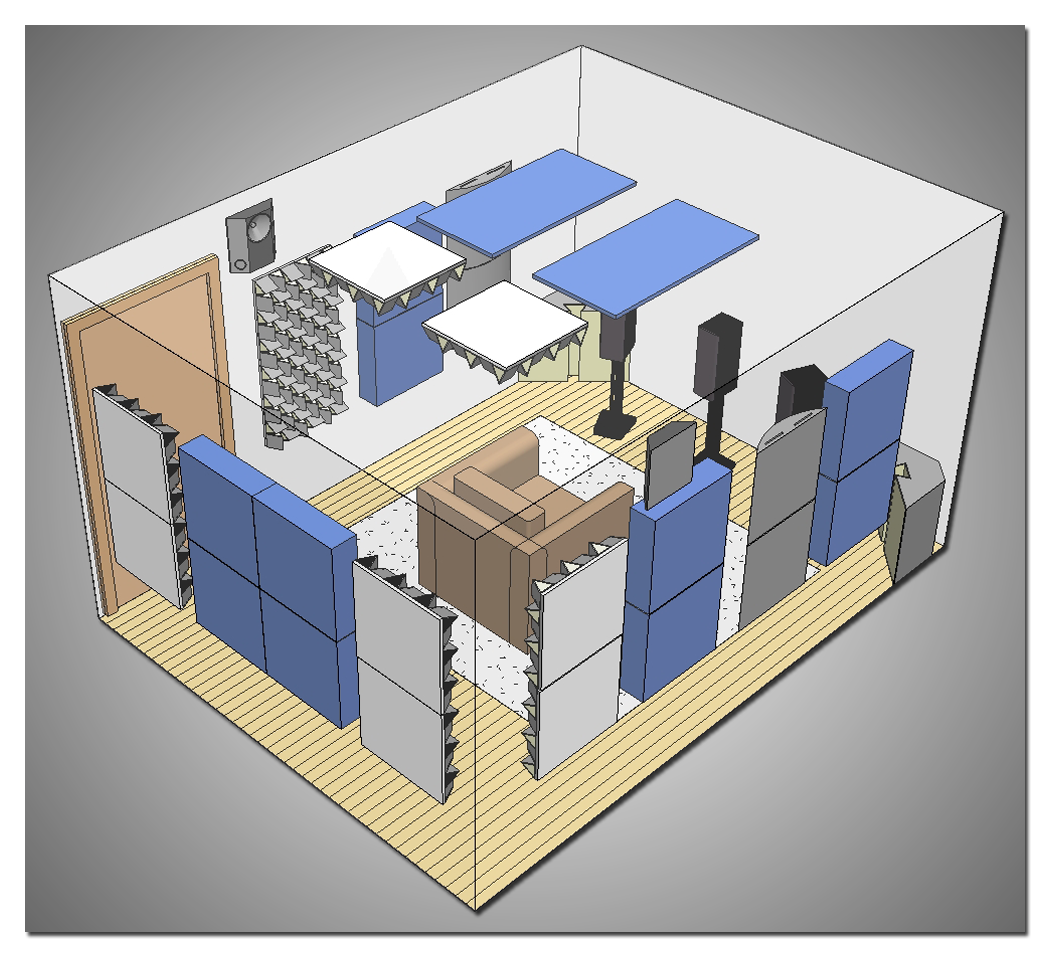

  • System 150
    For 150 sq. foot rooms

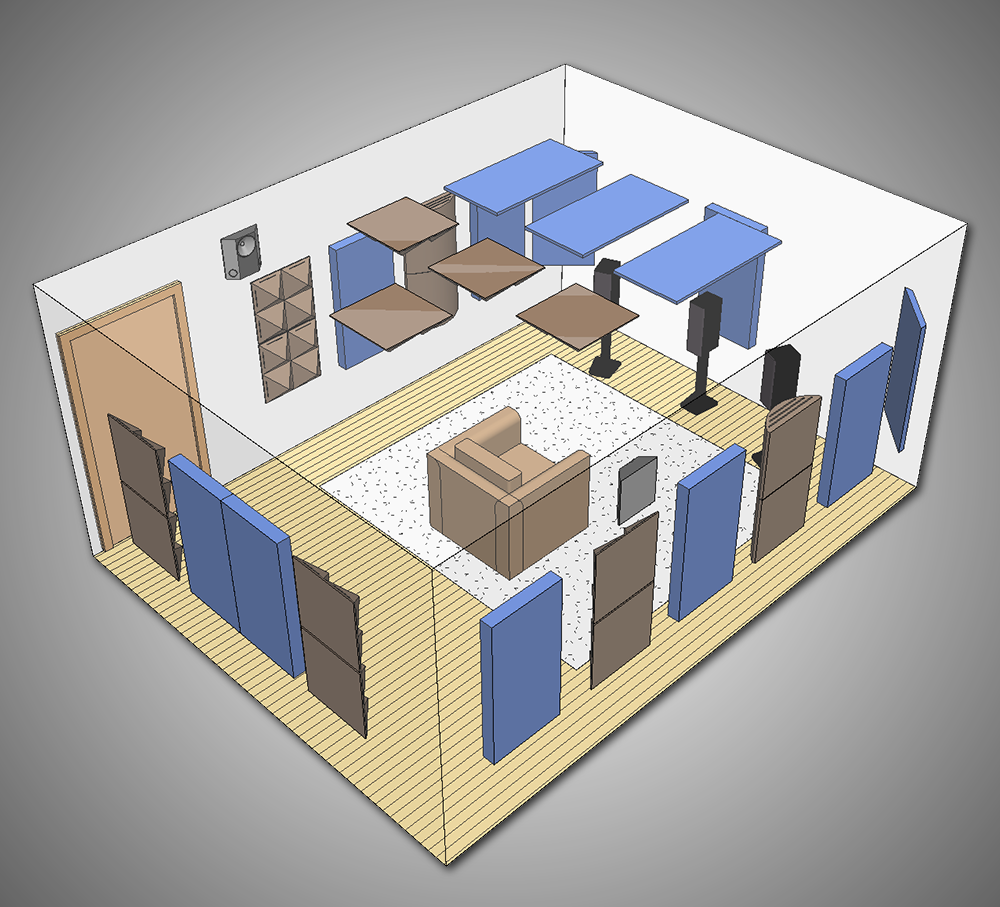

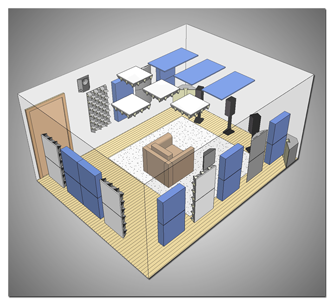

  • System 250
    For 250 sq. foot rooms

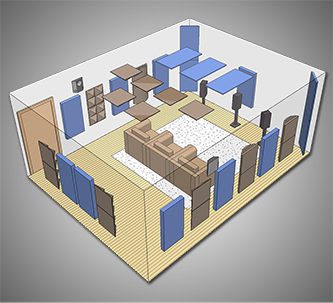

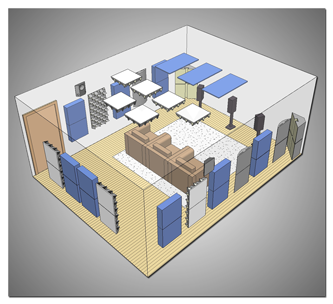

  • System 350
    For 350 sq. foot rooms



5 Absorber Panels
10 P-fuser
1 Flat Bass Filters

4 C-Fusers
2 Corner Bass Filters
2 Ceiling Cloud



7 Absorber Panels
12 P-fuser
1 Flat Bass Filters

4 C-Fusers
2 Corner Bass Filters
3 Ceiling Cloud



8 Absorber Panels
14 P-fuser
1 Flat Bass Filters

6 C-Fusers
4 Corner Bass Filters
3 Ceiling Cloud

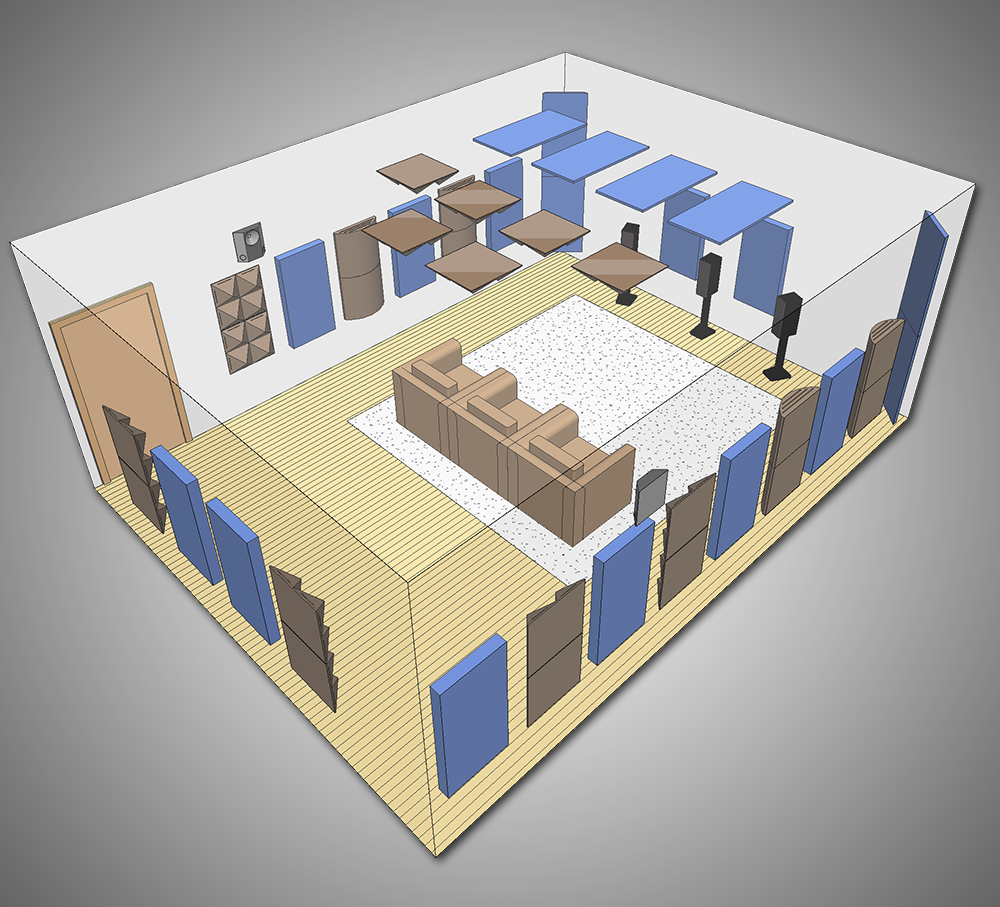

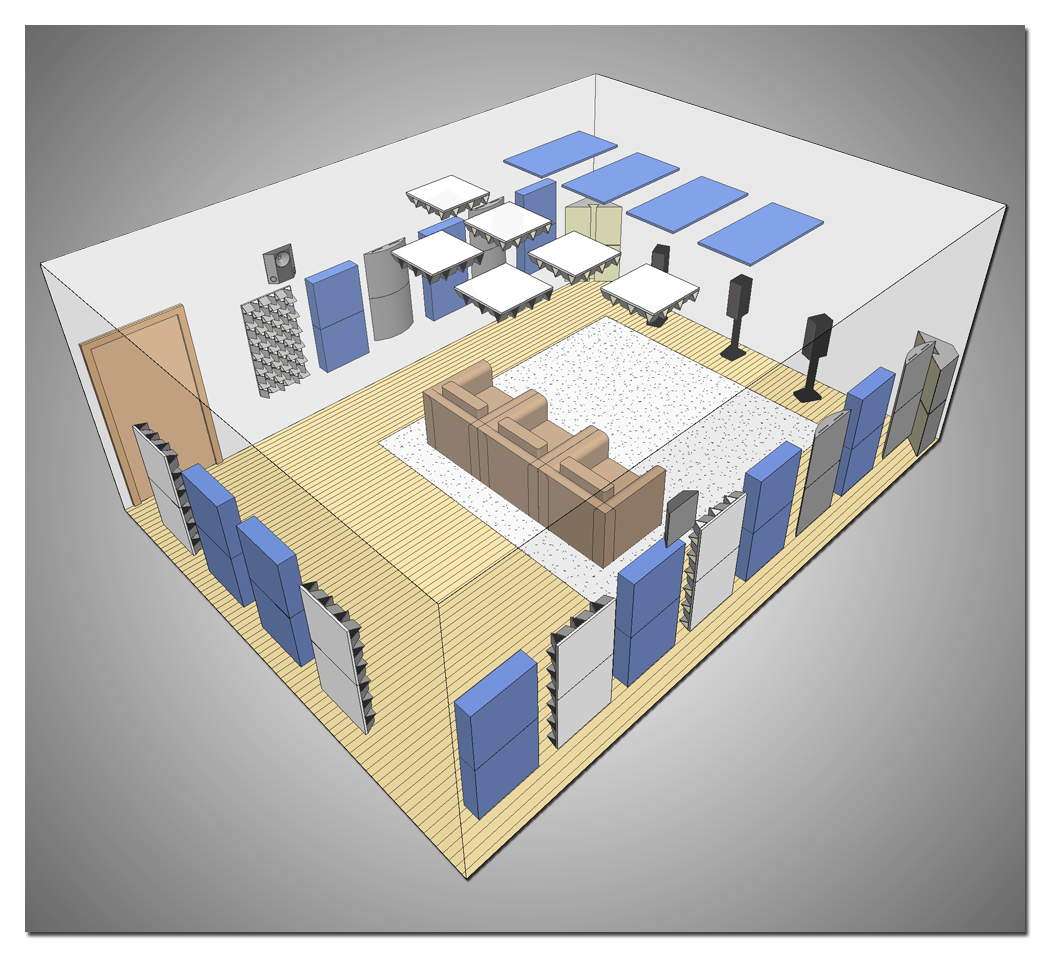

  • System 450
    For 450 sq. foot rooms

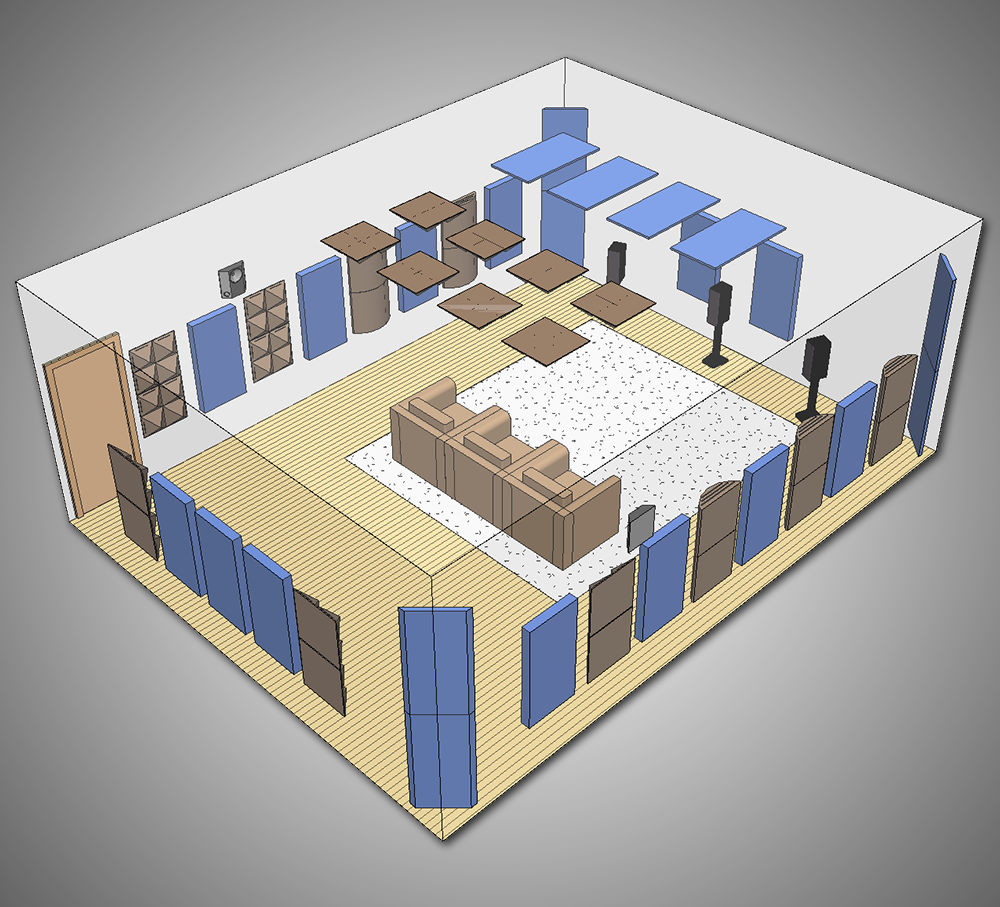

  • System 550
    For 550 sq. foot rooms

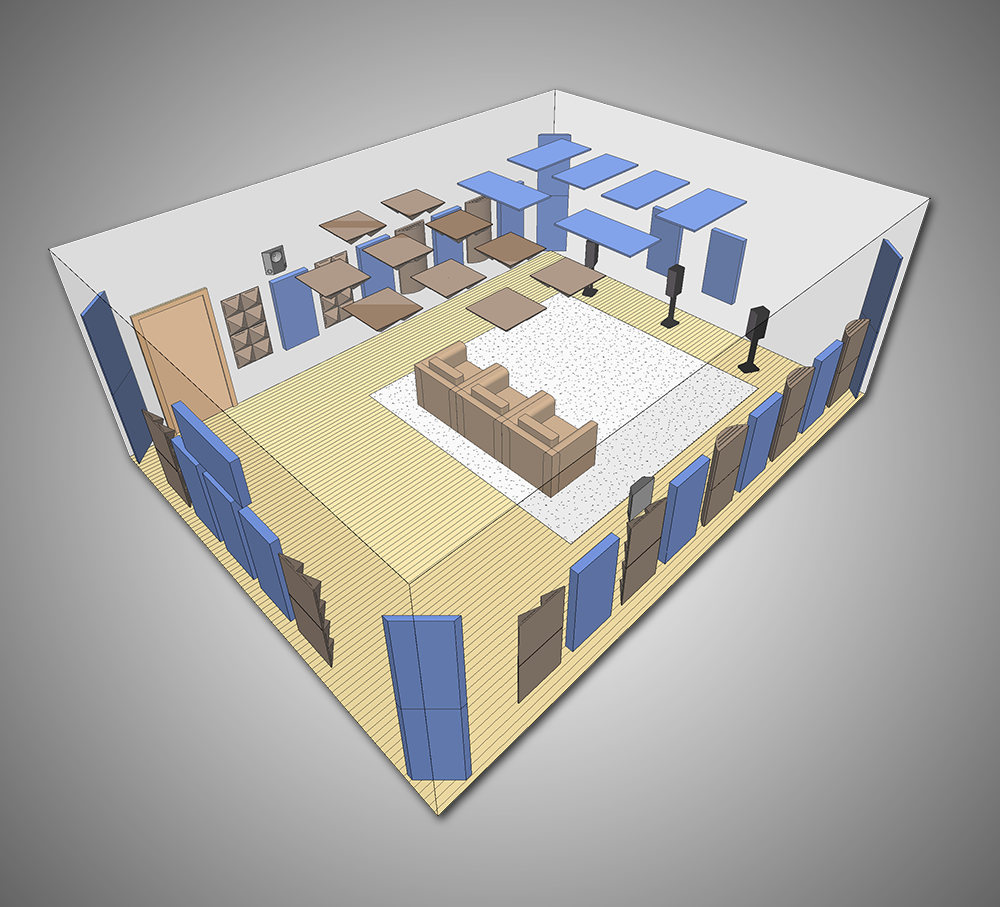

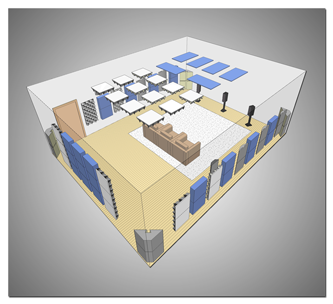

  • System 650
    For 650 sq. foot rooms



9 Absorber Panels
16 P-fuser
2 Flat Bass Filters

8 C-Fusers
4 Corner Bass Filters
4 Ceiling Cloud



11 Absorber Panels
18 P-fuser
2 Flat Bass Filters

10 C-Fusers
6 Corner Bass Filters
4 Ceiling Cloud



12 Absorber Panels
22 P-fuser
2 Flat Bass Filters

10 C-Fusers
8 Corner Bass Filters
6 Ceiling Cloud
