Sonata System Layouts

Click image below for larger view.

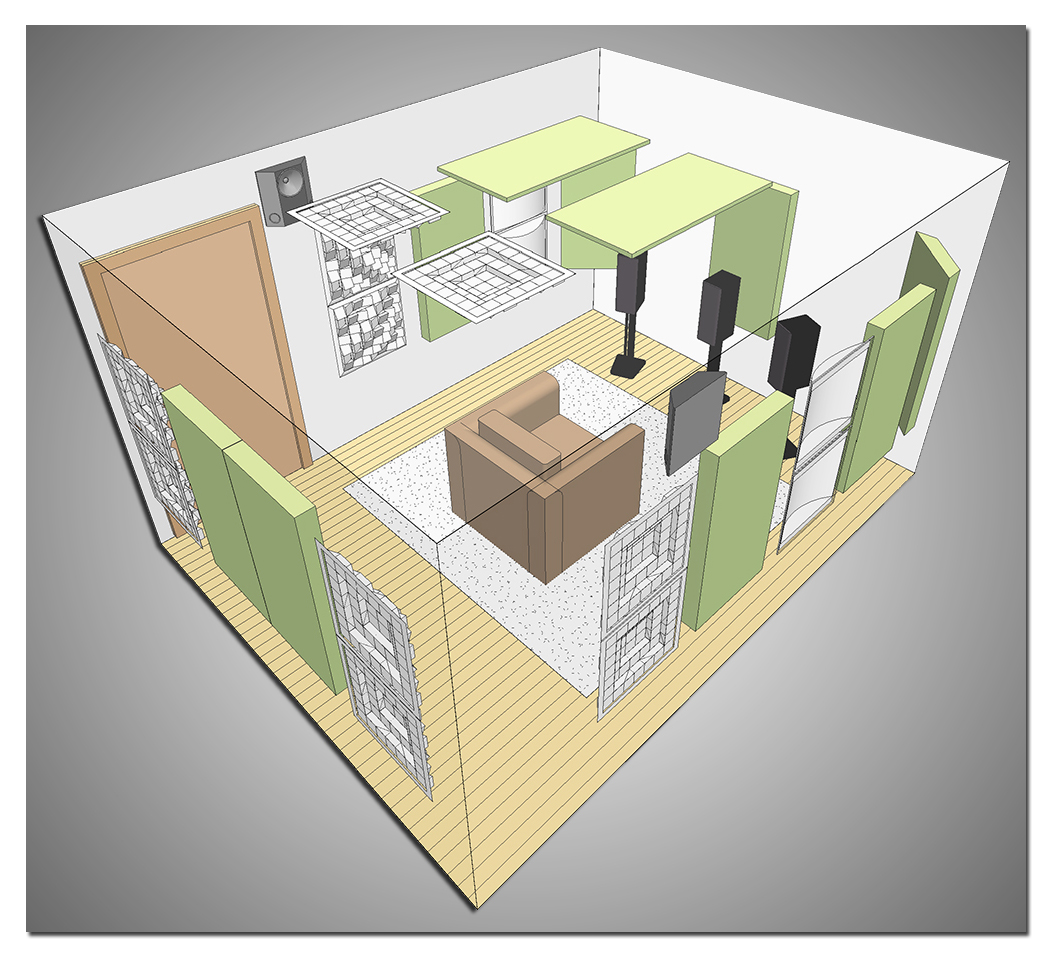

  • System 150
    For 150 sq. foot rooms

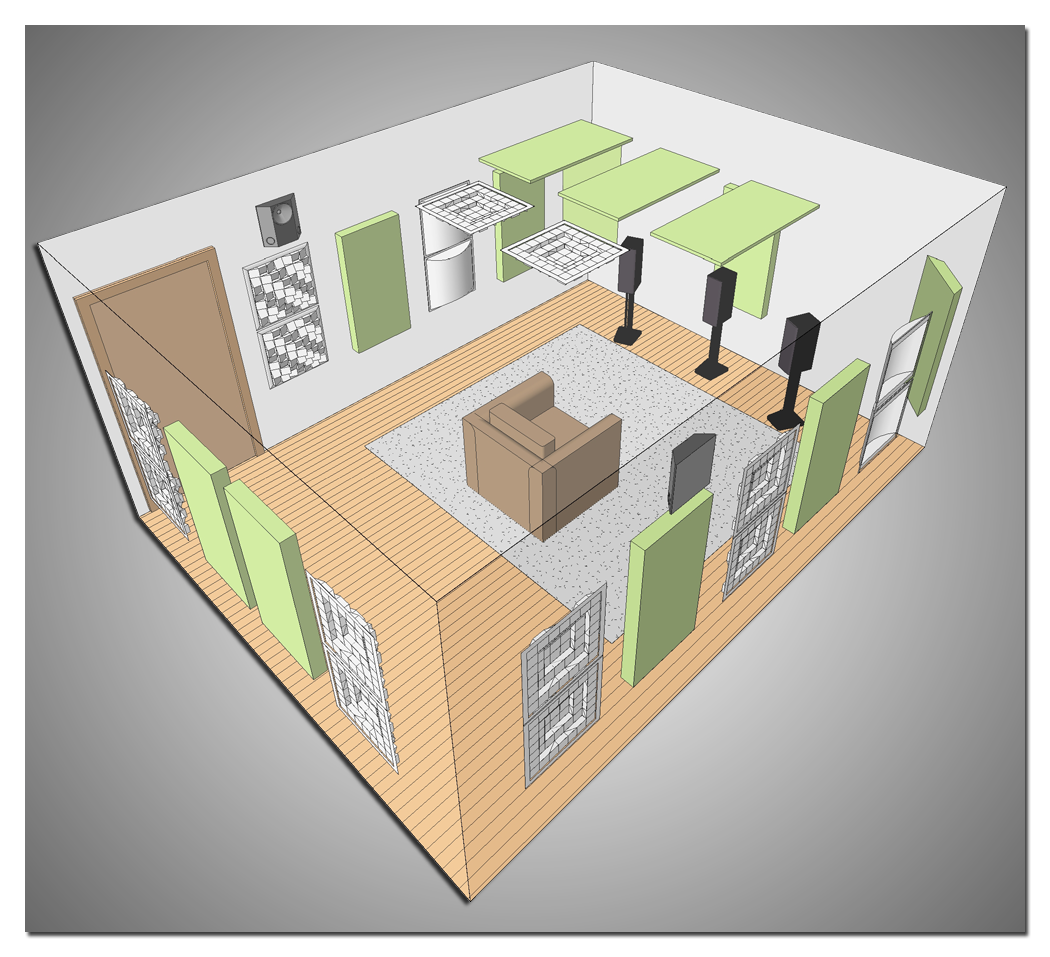

  • System 250
    For 250 sq. foot rooms

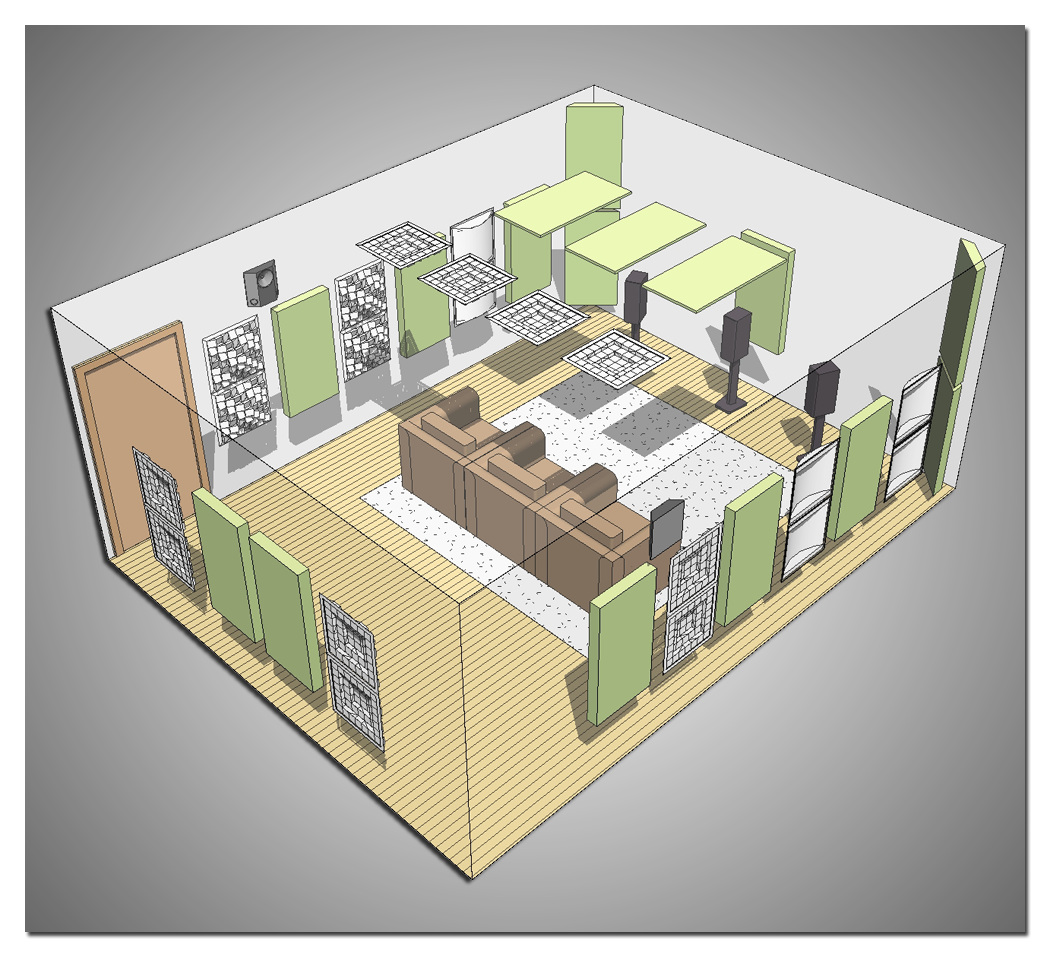

  • System 350
    For 350 sq. foot rooms



5 Absorber Panels
1 Flat Bass Filters
2 Corner Bass Filters

2 Ceiling Cloud
10 DR2 Diffusers
4 DC2 Diffusers





6 Absorber Panels
1 Flat Bass Filters
2 Corner Bass Filters

3 Ceiling Cloud
12 DR2 Diffusers
4 DC2 Diffusers



8 Absorber Panels
1 Flat Bass Filters
4 Corner Bass Filters

3 Ceiling Cloud
14 DR2 Diffusers
6 DC2 Diffusers

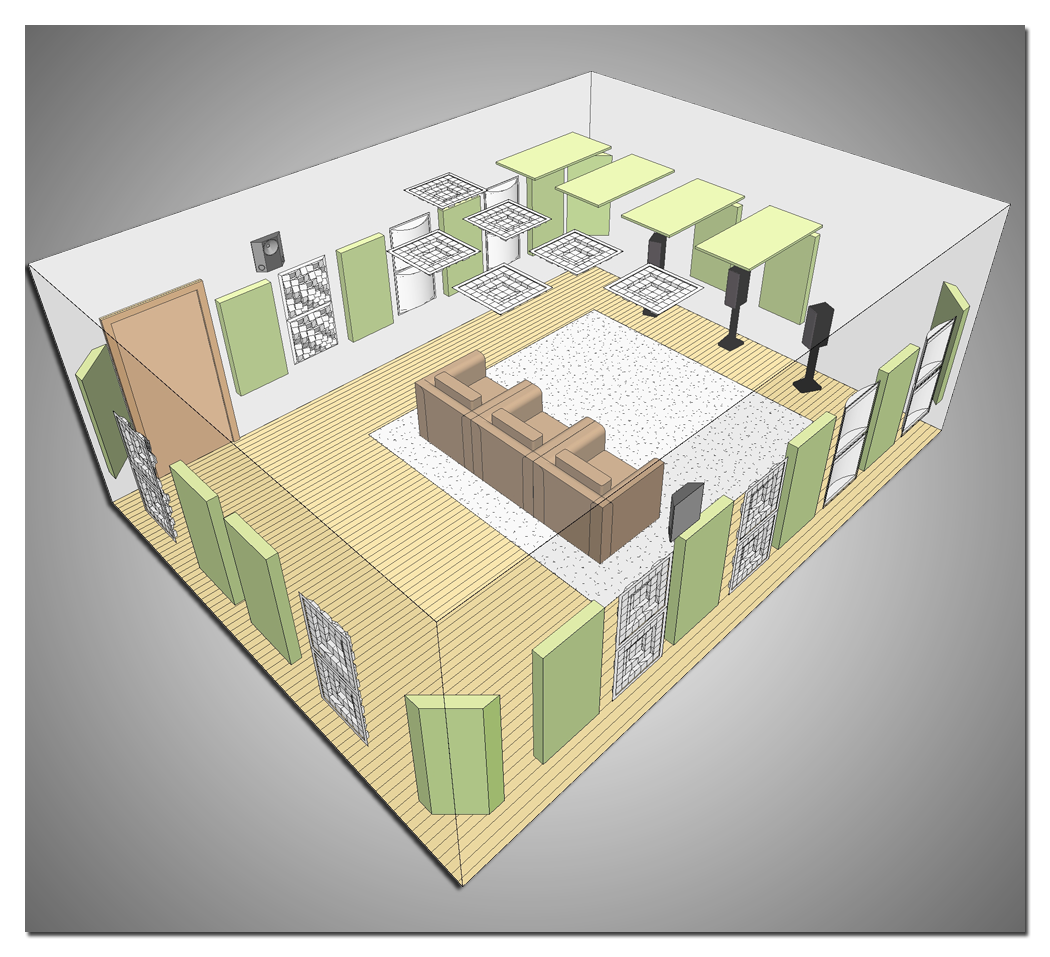

  • System 450
    For 450 sq. foot rooms

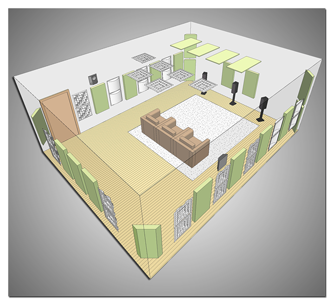

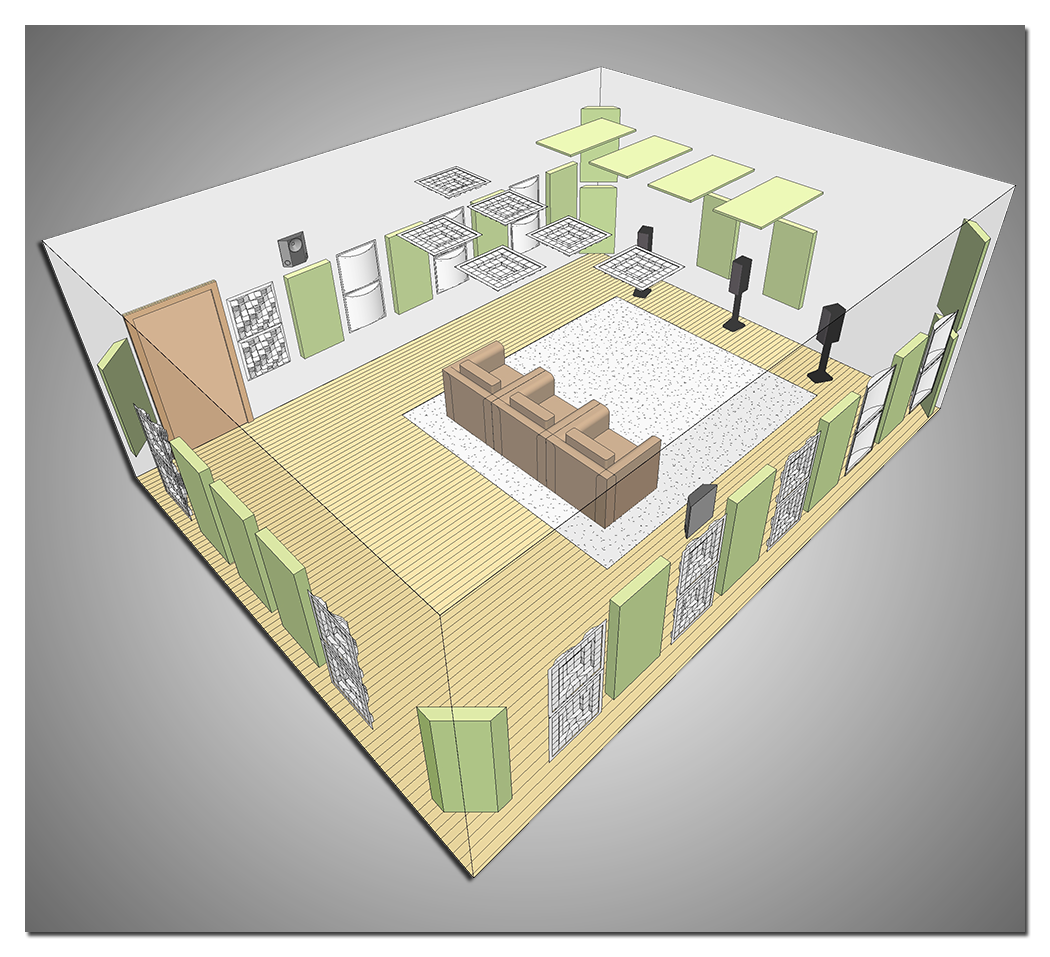

  • System 550
    For 550 sq. foot rooms

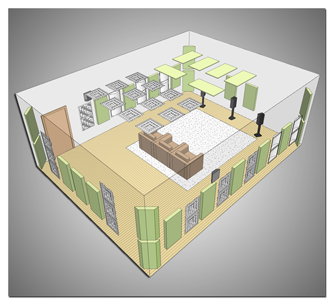

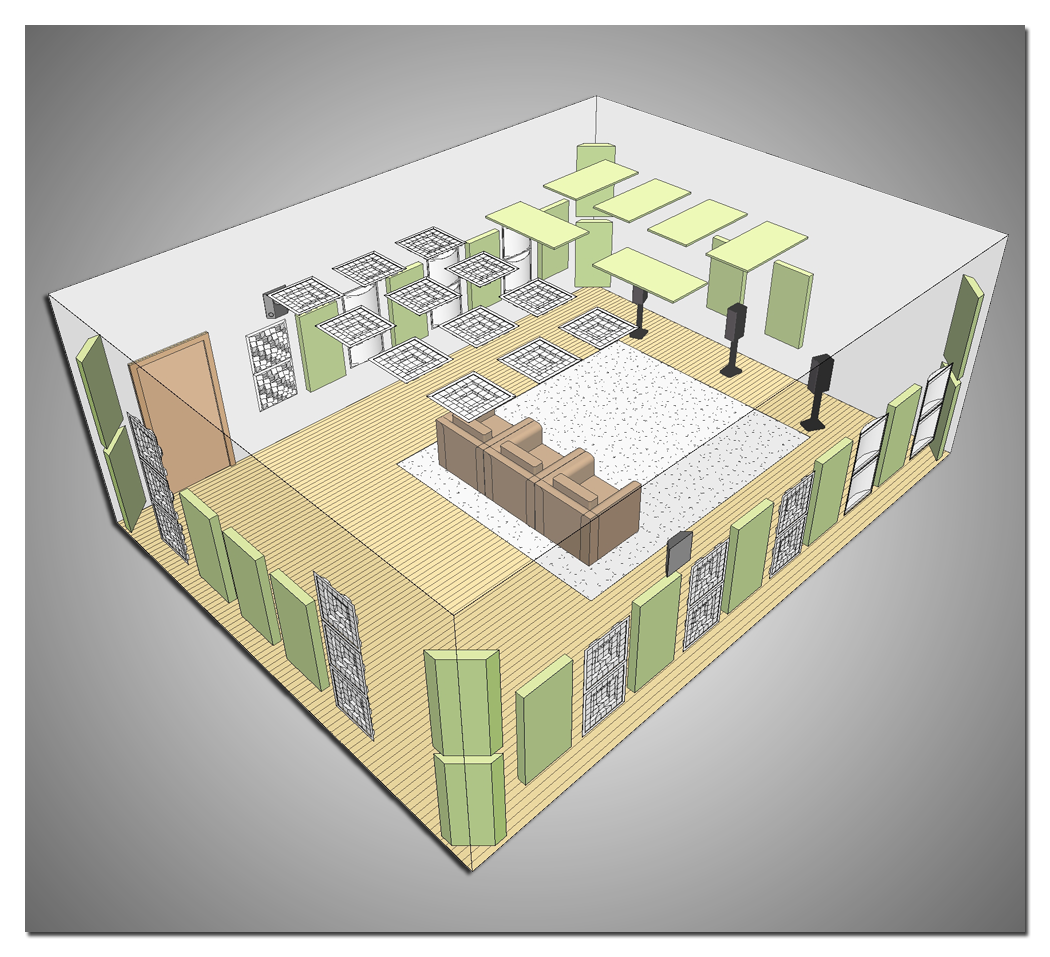

  • System 650
    For 650 sq. foot rooms



10 Absorber Panels
2 Flat Bass Filters
4 Corner Bass Filters

4 Ceiling Cloud
16 DR2 Diffusers
8 DC2 Diffusers





11 Absorber Panels
2 Flat Bass Filters
6 Corner Bass Filters

4 Ceiling Cloud
18 DR2 Diffusers
10 DC2 Diffusers



12 Absorber Panels
2 Flat Bass Filters
8 Corner Bass Filters

6 Ceiling Cloud
26 DR2 Diffusers
10 DC2 Diffusers
